Application :
Wide variety of electronic equipment
Product Features : Low resistance, High hold current, Solid state
Radial-leaded product ideal for up to 30V
Operation current: 900mA~9A
Maximum voltage: 30V
Temperature range: -40ºC to 85ºC
Agency Approvals: UL(E211981),C-UL(E211981) & TÜV(R3-50004084)
|
|
Electrical
Characteristics(23ºC)
|
PartNumber |
Hold
Current |
Trip
Current |
Max.Time
to Trip |
Maximum
Current |
Rated
Voltage |
Typical
Power |
Resistance Tolerance |
|
RMIN |
R1MAX |
|
IH,A |
IT,A |
at 5XIH |
VMAX,V |
IMAX,A |
Pd,
W |
Ω |
Ω |
| FRU090-30 |
0.90 |
1.80 |
5.9 |
40 |
30 |
0.6 |
0.070 |
0.22 |
| FRU110-30 |
1.10 |
2.20 |
6.6 |
40 |
30 |
0.7 |
0.050 |
0.17 |
| FRU135-30 |
1.35 |
2.70 |
7.3 |
40 |
30 |
0.8 |
0.040 |
0.13 |
| FRU160-30 |
1.60 |
3.20 |
8.0 |
40 |
30 |
0.9 |
0.030 |
0.11 |
| FRU185-30 |
1.85 |
3.70 |
8.7 |
40 |
30 |
1.0 |
0.030 |
0.09 |
| FRU250-30 |
2.50 |
5.00 |
10.3 |
40 |
30 |
1.2 |
0.020 |
0.07 |
| FRU300-30 |
3.00 |
6.00 |
10.8 |
40 |
30 |
2.0 |
0.020 |
0.08 |
| FRU400-30 |
4.00 |
8.00 |
12.7 |
40 |
30 |
2.5 |
0.010 |
0.05 |
| FRU500-30 |
5.00 |
10.00 |
14.5 |
40 |
30 |
3.0 |
0.010 |
0.05 |
| FRU600-30 |
6.00 |
12.00 |
16.0 |
40 |
30 |
3.5 |
0.005 |
0.04 |
| FRU700-30 |
7.00 |
14.00 |
17.5 |
40 |
30 |
3.8 |
0.005 |
0.03 |
| FRU800-30 |
8.00 |
16.00 |
18.8 |
40 |
30 |
4.0 |
0.005 |
0.02 |
| FRU900-30 |
9.00 |
18.00 |
20.0 |
40 |
30 |
4.2 |
0.005 |
0.02
|
IH=Hold current-maximum current at which the device will not trip at 23ºC still air.
IT=Trip current-minimum current at which the device will always trip at 23ºC still air.
V MAX=Maximum voltage device can withstand without damage at its rated current.
I MAX= Maximum fault current device can withstand without damage at rated voltage (V MAX).
Pd=Typical power dissipated from device when in the tripped state in 23ºC still air environment.
RMIN=Minimum device resistance at 23ºC.
R1MAX=Maximum device resistance at 23ºC 1 hour after tripping .
Physical specifications:
Lead material: FRU090~FRU250 Tin plated copper,24 AWG.
FRU300~FRU900 Tin plated copper,20 AWG.
Soldering characteristics:MIL-STD-202, Method 208E.
Insulating coating:Flame retardant epoxy ,meet UL-94V-0 requirement. |
|
FRU Product Dimensions (Millimeters)
|
|
FRU 090-30 ~ FRU 250-30
Lead Size :24AWG,
Ø 0.51mm Diameter |
FRU 300-30 ~ FRU 900-30
Lead Size : 20AWG,
Ø 0.81 mm Diameter |
|
PartNumber |
A
|
B
|
C
|
D
|
E
|
F |
|
Maximum |
Maximum |
Typical |
Minimum |
Maximum |
Typical |
| FRU090-30 |
7.4 |
12.2 |
5.1 |
7.6 |
3.0 |
0.9 |
| FRU110-30 |
7.4 |
14.2 |
5.1 |
7.6 |
3.0 |
0.9 |
| FRU135-30 |
8.9 |
13.5 |
5.1 |
7.6 |
3.0 |
0.9 |
| FRU160-30 |
8.9 |
15.2 |
5.1 |
7.6 |
3.0 |
0.9 |
| FRU185-30 |
10.2 |
15.7 |
5.1 |
7.6 |
3.0 |
0.9 |
| FRU250-30 |
11.4 |
18.3 |
5.1 |
7.6 |
3.0 |
0.9 |
| FRU300-30 |
11.4 |
17.3 |
5.1 |
7.6 |
3.0 |
1.2 |
| FRU400-30 |
14.0 |
20.1 |
5.1 |
7.6 |
3.0 |
1.2 |
| FRU500-30 |
14.0 |
24.9 |
10.2 |
7.6 |
3.0 |
1.2 |
| FRU600-30 |
16.5 |
24.9 |
10.2 |
7.6 |
3.0 |
1.2 |
| FRU700-30 |
19.1 |
26.7 |
10.2 |
7.6 |
3.0 |
1.2 |
| FRU800-30 |
21.6 |
29.2 |
10.2 |
7.6 |
3.0 |
1.2 |
| FRU900-30 |
24.1 |
29.7 |
10.2 |
7.6 |
3.0 |
1.2 |
|
Thermal Derating
Curve
 |
|

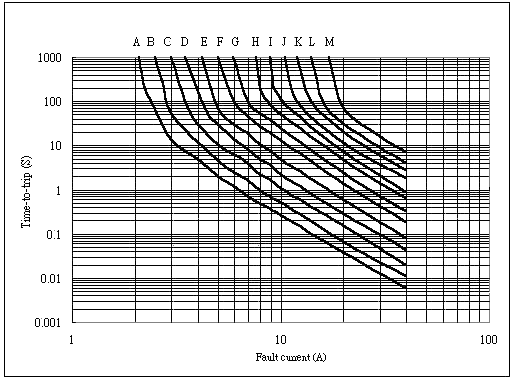

Typical Time-To-Trip at 23ºC
| A =FRU090-30 |
B =FRU110-30 |
C =FRU135-30 |
D =FRU160-30 |
| E =FRU185-30 |
F =FRU250-30 |
G =FRU300-30 |
H =FRU400-30 |
| I = FRU500-30 |
J = FRU600-30 |
K =FRU700-30 |
L =FRU800-30 |
| M =FRU900-30
|
| | |
|
**Specifications subject to changes**
