 Hasco Electrmechanical Relays

DPDT—DIP PC STANDARD OR SENSITIVE 2.0 AMP BIFURCATED CONTACT RELAY
DPDT PC-DIP 2.0 Amp - CAS112/CS212 Features
  • Sensitive available.
  • Fully sealed.
    RU File E75887 and CSA File LR49291
  • COIL RATINGS FOR STANDARD CAS 112
    Relay
    Code
    (V)
    Contact
    Arrange-
    ment
    Nom.
    Volt
    (VDC)
    Coil
    Resist.
    (Ohms
    +/-10%)
    Nom.
    Curr.
    (mA)
    Pick-
    Up
    Volt.
    (VDC)
    Drop-
    Out
    Volt.
    (VDC)
    Max.
    Volt.
    (VDC)
    Nom.
    Pwr(W)
    Cons'p-
    tion
    DPDT
    (2 Form C)
    5
    45
    111.0
    3.8
    0.25
    7.8
    Approx.
    0.55
    6
    70
    90.9
    4.5
    0.3
    9.7
    9
    160
    85.7
    6.75
    0.45
    13.5
    12
    280
    43.1
    9.0
    0.6
    19.4
    24
    1070
    22.4
    18.0
    1.2
    37.6
    48
    4300
    11.1
    36.0
    2.4
    74.2
    Data Measued at 20 degrees C

    Dimensions

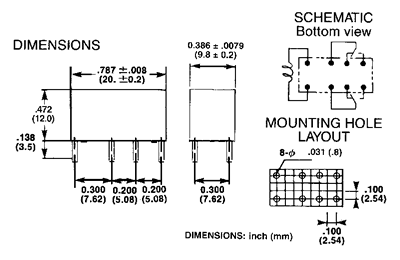

    Dimensions, Schematic and Mounting Hole Layout

    COIL RATINGS FOR SENSITIVE CS 212
    Relay
    Code
    (V)
    Contact
    Arrange-
    ment
    Nom.
    Volt
    (VDC)
    Coil
    Resist.
    (Ohms
    +/-10%)
    Nom.
    Curr.
    (mA)
    Pick-
    Up
    Volt.
    (VDC)
    Drop-
    Out
    Volt.
    (VDC)
    Max.
    Volt.
    (VDC)
    Nom.
    Pwr(W)
    Cons'p-
    tion
    DPDt
    (2 Form C)
    3
    69
    43.4
    2.25
    0.24
    9.0
    0.13
    5
    167
    29.9
    3.8
    0.4
    15.0
    0.15
    6
    240
    25.0
    4.5
    0.48
    18.0
    0.15
    9
    540
    16.7
    6.8
    0.72
    27.0
    0.15
    12
    960
    12.5
    9.0
    0.96
    35.6
    0.15
    18
    2160
    8.3
    13.5
    1.44
    53.4
    0.15
    24
    3840
    6.3
    18.0
    1.92
    70.1
    0.15
    48
    7680
    6.5
    36.0
    3.84
    76.8
    0.30
    As for the resistance value, pull-in voltage and drop-out voltage, they show
    the value at ambient temperature, 20 degrees C, and the tolerance is +/- 10%

    RATING PERFORMANCE
    Specifications Note
    Contact Contact
    Arrangement
    DPDT, 2 Form C
    Contact Material Gold-clad, Ag-Pd alloy

    Contact Max. 100 mOhms at initial value
    Max. Switching Power DC 30W
    AC 50 VA
    at resistive load
    Max. Switching Voltage 125VDC
    150VAC
    Max. Switching Current 2A 30VDC
    0.6 / 125 VAC
    2.5A @ 12V
    Time Operate Time (Type CS) Approx. 5 msec.
    (Type CAS) Approx. 5 msec.
    Release Time (Type CS) Approx. 3 msec.
    (Type CAS) Approx. 5 msec.
    Bounce Time (Operating) Approx. 0.5 to 1 msec.
    Bounce Time (Releasing) Approx. 02.5 to 3 msec.
    Insulation Resistance   100 M Ohms at 500 VAC, 25°C, 50% relative humidity
    Dielectric Strength 1000VAC Between coil and contacts
    1000VAC Between open contacts
    CAS, CS
    FCC Surge Strength 1500V Between coil and contacts
    Between Adjacent contacts
    CS
    Vibration Resistance   10g (10 - 55 Hz)
    Temperature   -25°C ~ +75°C
    -25°C ~ +85°C
    CAS, CS
    Life Mechanical Life 2 x 107 times
    Electrical Life 2 x 106 times at 20mV 1KHz 1mA resistive load
    Weight   5 g

    **Specifications subject to changes**
