 Hasco Electrmechanical Relays

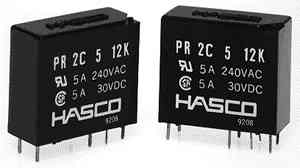

PR Series Compact Power Relays 1C (16A, 10A), 2C (5A)
PR Series Compact Power Relays 1C (16A, 10A), 2C (5A) image Features
  • High breakdown voltage (4,000V AC between coil and contact)
  • Large switching capacity (16A 240V AC)
  • Fully sealed

    RU File E75887 and CSA File LR49291
  • TYPICAL APPLICATIONS
    General electronic controls or systems, Machine tool controls, Energy control circuits, Industrial machinery controls, Consumer controls(Air-conditioner, Refrigerator, Microwave Oven, etc.), Vending Machine, Office machine, etc.

    COIL RATINGS
    Rated
    Voltage
    Resistance
    (+/-10% at 20ºC)
    Rated Current
    (+/-10% at 20ºC)
    Pick-up
    Voltage (Max.)
    Drop-Out
    Voltage (min.)
    Allowable
    Voltage (Max.)
    Rated
    operating power
    5V DC 47 Ohms 106.3 mA 4V DC 0.5V DC 6V DC Approx 0.5W
    6V DC 68 Ohms 88mA 4.8V DC 0.6V DC 7.2V DC
    9V DC 155 Ohms 58mA 7.2V DC 0.9V DC 10.8V DC
    12V DC 275 Ohms 44mA 9.6V DC 1.2V DC 14.4V DC
    24V DC 1,100 Ohms 22mA 19.2V DC 2.4V DC 28.8V DC
    48V DC 4,400 Ohms 11mA 38.4V DC 4.8V DC 57.6V DC
    110V DC 14,400 Ohms 7.6mA 80V DC 11V DC 120V DC
    *Coil resistance varies +/- 0.4% for each +/- 1ºC change in coil temperature

    CONTACT RATINGS
    Type & Arrangement PR-1 (1a, 1c) PR-1 (1a, 1c) PR-2 (2a, 2c)
      Load
    Item R load
    (p.f. = 1)
    L load
    (p.f. = 0.7)
    R load
    (p.f. = 1)
    L load
    (p.f. = 0.7)
    R load
    (p.f. = 1)
    L load
    (p.f. = 0.7)
    Rated load 16A 240V AC
    16A 30V DC
    8A 240V AC
    8A 30VDC
    10A 240V AC
    10A 30V DC
    5A 240V AC
    5A 30V DC
    5A 240V AC
    5A 30V DC
    2.5A 240V AC
    2.5A 30V DC
    Carry current 1/2 hp 120VAC 16A 1/4 hp 120VAC 10A 1/8 hp 120VAC 5A
    Max. operating voltage 380V AC, 120V DC
    Max. operating current 16A/3A Tungsten 10A/3A Tungsten 5A
    Max. switching capacity 3,520VA, 480W 1,760VA, 240W 2,200VA, 300W 1,100VA, 150W 1,100VA,150W 500VA, 75W
    Material AgCdO
    Contact resistance Less than 50mOhms (initial value)

    SPECIFICATIONS
    Operate time 15m sec. max.
    Release time 10m sec. max.
    Breakdown voltage 1,000V AC (60 Hz) for 1 minute between open contacts
    4,000V AC (60 Hz) for 1 minute between coil and contacts
    Insulation Resistance More than 1,000 M Ohms at 500V DC
    Vibration resistance 10 ~ 55 Hz at double amplitude of 1.5 mm
    Shock resistance 10G min.
    Ambient temperature range -40ºC ~ +85ºC
    Operating speed 1,800 operations/hour
    Life Mechanical Over 10,000,000 operations
    Electrical (R load) Over 100,000 operations
    Weight Approx. 17 g (PR-1), Approx. 22 g (PR-2)


    Part Builder and Ordering Information
    PR

    Sample Ordering Information
    Ordering Information
    Dimensions and Schematics PR
    Outline
    Contact Arr-
    angement "a"
    Dimensions Contact Arr-
    angement "c"
    Dimensions
    PART NUMBERS
    PR1A16DC5K PR1B12DC5K PR1C12DC5R
    PR1A16DC6K PR1B12DC6K PR1C12DC6R
    PR1A16DC12K PR1B12DC12K PR1C12DC12R
    PR1A16DC24K PR1B12DC24K PR1C12DC24R
    PR1A16DC48K PR1B12DC48K PR1C12DC48R
    PR1A16DC60K PR1B12DC60K PR1C12DC60R
    PR1A16DC110K PR1B12DC110K PR1C12DC110R
    PR1B16DC5K PR1C12DC5K PR2A8DC5K
    PR1B16DC6K PR1C12DC6K PR2A8DC6K
    PR1B16DC12K PR1C12DC12K PR2A8DC12K
    PR1B16DC24K PR1C12DC24K PR2A8DC24K
    PR1B16DC48K PR1C12DC48K PR2A8DC48K
    PR1B16DC60K PR1C12DC60K PR2A8DC60K
    PR1B16DC110K PR1C12DC110K PR2A8DC110K
    PR1C16DC5K PR1A12DC5R PR2B8DC5K
    PR1C16DC6K PR1A12DC6R PR2B8DC6K
    PR1C16DC12K PR1A12DC12R PR2B8DC12K
    PR1C16DC24K PR1A12DC24R PR2B8DC24K
    PR1C16DC48K PR1A12DC48R PR2B8DC48K
    PR1C16DC60K PR1A12DC60R PR2B8DC60K
    PR1C16DC110K PR1A12DC110R PR2B8DC110K
    PR1A12DC5K PR1B12DC5R PR2C8DC5K
    PR1A12DC6K PR1B12DC6R PR2C8DC6K
    PR1A12DC12K PR1B12DC12R PR2C8DC12K
    PR1A12DC24K PR1B12DC24R PR2C8DC24K
    PR1A12DC48K PR1B12DC48R PR2C8DC48K
    PR1A12DC60K PR1B12DC60R PR2C8DC60K
    PR1A12DC110K PR1B12DC110R PR2C8DC110K

    Dimensions Dimensions


    DIMENSIONS/UNIT mm(inch)
    Dimensions
    Dimensions


    **Specifications subject to changes**
