     Graphic Monochrome LCD Modules

    Graphic Monochrome LCD Modules


    Once you select a Model Below, use the Part Numbering System to request a quote.
    Graphic Key Part Numbering System

    Display Format (Char x Line)

    Model Number

    Outline Dimension (WxH) mm

    		Viewing Area (WxH) mm Dot Size (WxH) mm Dot Pitch (WxH) mm Driving Method (Duty)

    Mode


    STN GRAY STN YELLOW STN BLUE FSTN B&W Built-in Controller Drawing Photo
    122x32 SGM12203231 84.0*44.0 60.0*18.0 0.40*0.45 0.44*0.49 1/32 Y Y Y Y SED1520*
    122x32 SGM12203233 65.4*29.1 54.8*19.0 0.36*0.41 0.40*0.45 1/32 Y Y     SED1520*
    122x32 SGM12203234 80.0*36.0 60.0*18.0 0.40*0.45 0.44*0.49 1/32 Y Y Y Y SED1520*
    122x32 SGM12203236 59.0*29.3 52.0*15.0 0.345*0.345 0.375*0.375 1/32 Y Y   Y SED1520*
    128x128 SGM12812831 85.0*100.0 62.0*62.0 0.34*0.34 0.40*0.40 1/128 Y Y Y   T6963C*
    128x128 SGM12812833 72.5*69.9 50.0*49.0 0.32*0.32 0.35*0.35 1/128 Y Y Y   LC7981*
    144x32 SGM14403231 85.0*36.0 66.0*16.0 0.38*0.38 0.42*0.42 1/32 Y Y Y Y ST7920*
    128x64 SGM12806431 75.0*52.7 60.0*32.6 0.40*0.40 0.43*0.43 1/64 Y Y Y Y KS0108*
    128x64 SGM12806432 78.0*70.0 62.0*44.0 0.42*0.58 0.44*0.60 1/64 Y Y Y Y T6963C*
    128x64 SGM12806433 80.0*70.0 72.0*40.0 0.48*0.48 0.52*0.52 1/64 Y Y Y Y KS0108*

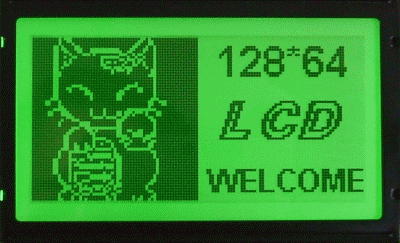

    128x64 SGM12806435 93.0*70.0 72.0*44.0 0.48*0.48 0.52*0.52 1/64 Y Y Y Y KS0108*
    128x64 SGM12806436 93.0*70.0 72.0*44.0 0.48*0.48 0.52*0.52 1/32 Y Y Y Y ST7920*
    128x64 SGM12806437 54.0*50.0 43.5*29.0 0.28*0.35 0.32*0.39 1/64 Y Y Y Y KS0108*
    128x64 SGM12806438 87.0*70.0 72.0*40.0 0.48*0.48 0.52*0.52 1/64 Y Y Y   T6963C*
    128x64 SGM12806439 78.0*70.0 62.0*44.0 0.42*0.58 0.44*0.60 1/64 Y Y Y Y KS0108*
    128x64 SGM1280643A 78.0*70.0 62.0*44.0 0.42*0.58 0.44*0.60 1/64 Y Y Y Y T6963C*
    128x64 SGM1280643B 113.0*53.0 72.0*40.0 0.48*0.48 0.52*0.52 1/64 Y Y Y Y KS0107-8*
    144x32 SGM1443232 80.0*36.0 66.0*16.0 0.38*0.38 0.42*0.42 1/32 Y Y Y Y ST7920*
    160x128 SGM16012833 129.0*102.0 101.0*82.0 0.54*0.54 0.58*0.58 1/128 Y Y Y Y T6963C*
    160x128 SGM16012831 129.0*102.0 101.0*82.0 0.56*0.56 0.60*0.60 1/128 Y Y Y Y T6963C*
    160x128 SGM16012832 150.0*112.0 101.0*82.0 0.56*0.56 0.60*0.60 1/128 Y Y Y Y T6963C*
    160x160 SGM16016032 89.2*85.0 62.0*62.0 0.34*0.34 0.38*0.38 1/160 Y Y Y Y NO
    160x160 SGM16016033 85.0*100.0 62.0*62.0 0.34*0.34 0.38*0.38 1/160 Y Y Y Y LC7981*
    160x32 SGM16003231 85.2*55.0 72.0*55.0 0.40*0.56 0.44*0.61 1/32 Y Y Y   SED1520*
    160x80 SGM16008031 93.0*70.0 72.0*40.0 0.48*0.48 0.52*0.52 1/80 Y Y Y Y LC7981*
    192x32 SGM19203231 116.0*37.0 84.0*18.6 0.38*0.46 0.42*0.50 1/32 Y Y Y Y ST7920*
    202x32 SGM20203231 146.0*43.0 123.0*23.0 0.57*0.57 0.59*0.59 1/32 Y Y Y Y SED1520*
    240x128 SGM24012831 114.0*104.0 114.0*64.0 0.43*0.43 0.45*0.45 1/128 Y Y Y Y T6963C*
    240x128 SGM24012832 170.0*93.6 128.0*75.0 0.43*0.43 0.45*0.45 1/128 Y Y Y Y NO
    240x128 SGM24012833 140.0*82.0 114.0*64.0 0.43*0.43 0.45*0.45 1/128 Y Y Y Y RA8802*
    240x128 SGM24012834 144.0*104.0 114.0*64.0 0.43*0.43 0.45*0.45 1/128 Y Y Y Y T6963C*
    240x128 SGM24012836 170.0*93.0 132.0*76.0 0.47*0.47 0.50*0.50 1/128 Y Y Y Y T6963C*
    240x128 SGM24012837 144.0*104.0 114.0*64.0 0.43*0.43 0.45*0.45 1/128 Y Y Y Y LC7981*
    240x64 SGM24006431 180.0*72.0 131.0*38.0 0.5*0.5 0.53*0.53 1/64 Y Y Y Y T6963C*
    240x64 SGM24006433 180.0*65.0 133.0*39.0 0.49*0.49 0.53*0.53 1/64 Y Y Y Y RA8802*
    240x64 SGM24006435 180.0*65.0 133.0*39.0 0.49*0.49 0.53*0.53 1/64 Y Y Y Y LC7981*
    240x64 SGM24006436 180.0*65.0 133.0*39.0 0.49*0.49 0.53*0.53 1/64 Y Y Y Y T6963C*
    240x64 SGM24006437 180.0*65.0 133.0*39.0 0.49*0.49 0.53*0.53 1/64 Y Y Y Y T6963C*
    320x240 SGM32024031 166.8*109.0 122.0*92.0 0.34*0.34 0.36*0.36 1/240 Y Y Y Y NO
    320x240 SGM32024032 160.0*109.0 122.0*92.0 0.34*0.34 0.36*0.36 1/240 Y Y Y Y SED1335*
    320x240 SGM32024033 142.0*96.0 104.0*79.3 0.27*0.27 0.30*0.30 1/240 Y Y Y Y NO
    320x240 SGM32024034 148.02*120.24 120.04*92.14 0.34*0.34 0.36*0.36 1/240 Y Y Y Y SED1335*
    320x240 SGM32024038 143.0*96.8 104.0*79.3 0.28*0.28 0.30*0.30 1/240 Y Y Y Y NO
    480x128 SGM48012831 241.2*99.0 209.4*61.7 0.39*0.39 0.42*0.42 1/128 Y     Y SED1335*

    * compatible


     Catalog Request
    Request A Free Shelly Catalog


    **Specifications subject to changes**
