Please Note: This vendor is no longer in business . Please Contact us if you need assistance or a cross reference to a different Manufacturer.

 Dot Matrix LCD Modules

Dot Matrix LCD Modules

Once you select a Model Below, use the Part Numbering System to request a quote.
Alphanumeric Key Part Numbering System
Display Format (Char x Line)

Model Number Outline Dimension (WxH) mm Viewing Area (WxH) mm Character Size (WxH) mm Dot Size (WxH) mill Driving Method (Duty) Mode
TN STN GRAY STN YELLOW STN BLUE FSTN B&W Built-in Controller Drawing Photo
8x2 SSM20831 58.0*32.0 38.0*16.0 2.96*5.56 0.56*0.66 1/16 Y Y Y Y   KS0066*
8x2 SSM20832 56.0*24.0 31.6*15.1 4.91*3.0 0.56*0.57 1/16 Y Y Y     KS0066*
12x2 SSM21231 55.7*32.0 46.0*14.5 2.65*5.50 0.45*0.60 1/16 Y Y Y Y   KS0066*
16x1 SSM11631 122.0*33.0 99.0*13.0 4.84*8.6 0.92*1.10 1/16 Y Y Y Y   KS0066*
16x1 SSM11635 80.0*36.0 66.0*16.0 3.07*6.56 0.55*0.75 1/16 Y Y Y Y   KS0066*
16x1 SSM11638 85.0*28.0 66.0*16.0 3.07*6.56 0.55*0.75 1/16 Y Y Y Y   KS0066*
16x2 SSM21631 80.0*36.0 66.0*16.0 2.96*5.56 0.55*0.65 1/16 Y Y Y Y   KS0066*
16x2 SSM21632 85.0*30.0 66.0*16.0 2.95*5.56 0.55*0.65 1/16 Y Y Y Y   KS0066*
16x2 SSM21633 85.0*32.6 66.0*16.0 2.95*5.56 0.55*0.65 1/16 Y Y Y Y   KS0066*
16x2 SSM21634 84.0*44.0 66.0*16.0 2.95*5.55 0.55*0.65 1/16 Y Y Y Y   KS0066*
16x2 SSM21635 85.0*36.0 66.0*16.0 2.95*5.56 0.55*0.65 1/16 Y Y Y Y   KS0066*
16x2 SSM21636 122.0*44.0 99.0*24.0 4.84*9.66 0.92*1.10 1/16 Y Y Y Y Y KS0066*
16x2 SSM21638 80.0*36.0 66.0*16.0 2.95*5.55 0.55*0.65 1/16 Y Y Y Y   KS0066*
16x2 SSM21639 85.0*25.2 66.0*16.0 2.95*5.55 0.55*0.65 1/16 Y Y Y Y Y KS0066*
16x2 SSM2163A 85.0*25.2 66.0*16.0 2.95*5.55 0.55*0.65 1/16 Y Y Y Y Y KS0066*
16x4 SSM41632 87.0*60.0 62.0*26.0 2.95*4.75 0.55*0.55 1/16 Y Y Y Y   KS0066*
16x4 SSM41633 70.6*60.0 60.0*32.6 2.95*4.75 0.55*0.55 1/16 Y Y Y Y   KS0066*
20x2 SSM22031 116.0*37.0 85.0*18.6 3.20*5.55 0.60*0.65 1/16 Y Y Y Y   KS0066*
20x2 SSM22032 180.0*40.0 149.0*23.0 6.00*9.66 1.12*1.12 1/16 Y Y Y Y   KS0066*
20x2 SSM22033 146.0*43.0 123.0*23.0 4.84*9.22 0.92*1.10 1/16 Y Y Y Y   KS0066*
20x2 SSM22034 89.1*21.5 75.0*15.0 2.95*5.15 0.55*0.65 1/16 Y Y Y     KS0066*

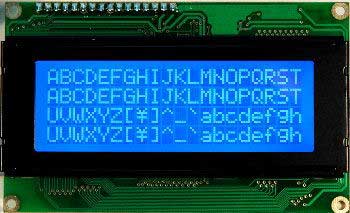

20x4 SSM42031 98.0*60.0 77.0*25.2 2.95*4.75 0.55*0.55 1/16 Y Y Y Y   KS0066*
20x4 SSM42032 77.0*47.0 60.0*22.0 2.30*4.03 0.42*0.46 1/16 Y Y Y Y   KS0066*
20x4 SSM42034 146.0*62.5 123.5*43.0 4.84*9.22 0.92*1.10 1/16 Y Y Y Y   KS0066*
24x2 SSM22433 118.0*36.0 94.5*16.0 3.2*5.55 0.60*0.65 1/16 Y Y Y Y   KS0066*
40x2 SSM24033 182.0*33.5 154.4*16.5 3.2*5.55 0.60*0.65 1/16 Y Y Y Y   KS0066*

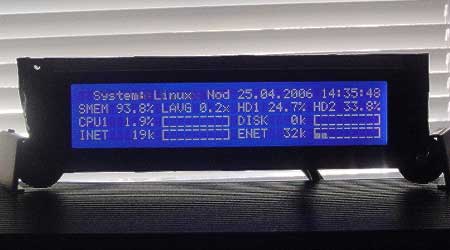

40x4 SSM44033 190.0*54.0 147.0*29.5 2.78*4.89 0.50*0.55 1/16 Y Y Y Y   KS0066*

* compatible


> Catalog Request

Request A Free Shelly Catalog


**Specifications subject to changes**
