 Frontline FLT Series

Application :
    Rechargeable battery packs
    Lithium cell and battery packs
Product Features : Low profile, Solid state
Operation current: 0.7A~3.4 A
Maximum voltage: 15V & 24V
Temperature range: -40ºC to 85ºC
Agency Approvals: UL (E211981), C-UL(E211981)& TÜV(R3-50004084


Electrical Characteristics(23ºC)

PartNumber Hold
Current
Trip
Current
Rated
Voltage
Maximum
Current
Typical
Power
Resistance Tolerance
RMIN R1MAX
IH,A IT,A VMAX,V IMAX,A Pd, W Ω Ω
FLT070 0.7 1.5 15 100 1.1 0.100 0.340
FLT070S 0.7 1.5 15 100 1.1 0.100 0.340
FLT100 1.00 2.5 24 100 1.5 0.070 0.260
FLT100S 1.00 2.5 24 100 1.5 0.070 0.260
FLT180 1.8 3.8 24 100 2.0 0.040 0.120
FLT180S 1.8 3.8 24 100 2.0 0.040 0.120
FLT190 1.9 4.2 24 100 1.9 0.030 0.100
FLT190RU 1.9 4.2 15 100 2.0 0.030 0.100
FLT260 2.6 5.2 24 100 2.3 0.025 0.076
FLT300 3.0 6.3 24 100 2.0 0.015 0.055
FLT310 3.1 6.0 24 100 2.5 0.018 0.055
FLT340 3.4 6.8 24 100 2.7 0.016 0.050

IH=Hold current-maximum current at which the device will not trip at 23ºC still air.
IT=Trip current-minimum current at which the device will always trip at 23ºC still air.
V MAX=Maximum voltage device can withstand without damage at its rated current.
I MAX= Maximum fault current device can withstand without damage at rated voltage (V
MAX).
Pd=Typical power dissipated from device when in the tripped state in 23ºC still air environment.
RMIN=Minimum device resistance at 23ºC.
R1MAX=Maximum device resistance at 23ºC 1 hour after tripping .
Physical specifications:
Lead material:0.13mm nominal thickness,quarter-hard nickel.
Insulating material:Polyester tape.

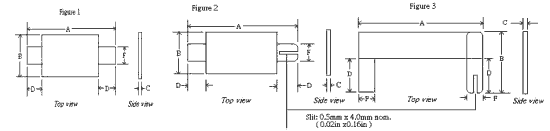

FLT Product Dimensions (Millimeters)

PartNumber Fig A B C D F
Min Max Min Max Min Max Min Max Min Max
FLT070 1 19.9 22.1 4.9 5.2 0.7 1.2 5.5 7.5 3.9 4.1
FLT070S 2 19.9 22.1 4.9 5.2 0.7 1.2 5.5 7.5 3.9 4.1
FLT100 1 20.9 23.1 4.9 5.2 0.6 1.0 4.1 5.5 3.9 4.1
FLT100S 2 20.9 23.1 4.9 5.2 0.6 1.0 4.1 5.5 3.9 4.1
FLT180 1 24.0 26.0 4.9 5.2 0.6 1.0 4.1 5.5 3.9 4.1
FLT180S 2 24.0 26.0 4.9 5.2 0.6 1.0 4.1 5.5 3.9 4.1
FLT190 1 21.3 23.4 10.2 11.0 0.5 1.1 5.0 7.6 4.8 5.4
FLT190RU 3 19.8 20.8 13.3 14.3 0.4 0.8 8.1 9.5 3.8 4.2
FLT260 1 24.0 26.0 10.8 11.9 0.6 1.0 5.0 7.0 5.9 6.1
FLT300 1 28.4 31.8 13.0 13.5 0.5 1.1 6.3 8.9 6 6.6
FLT310 1 24.0 26.0 14.8 15.9 0.6 1.0 5.0 7.0 5.9 6.1
FLT340 1 24.0 26.0 14.8 15.9 0.6 1.0 4.0 5.0 5.9 6.1

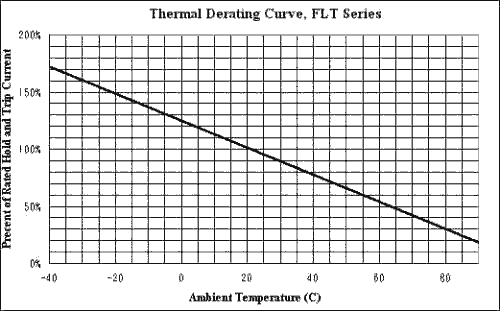

Thermal Derating Curve

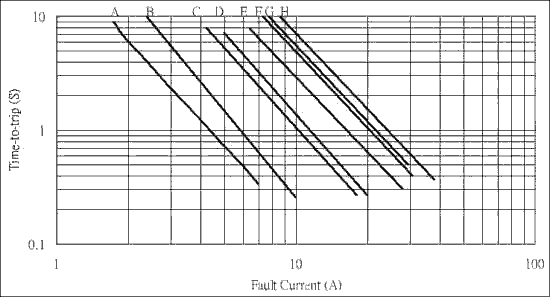

Typical Time-To-Trip at 23ºC

A =FRX010-60 B =FRX017-60 C =FRX020-60 D =FRX025-60
E =FRX030-60 F =FRX040-60 G =FRX050-60 H =FRX065-60

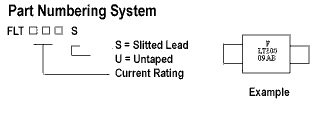

Part Builder and Ordering Information
FLT


**Specifications subject to changes**
