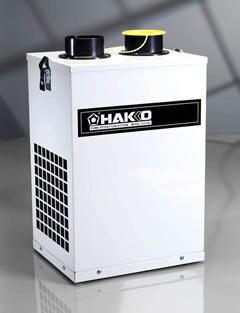

 The Hakko HJ3100 instantly removes smoke and fumes right at the source. Its dual port, hooded configuration employs a multi-stage filtration process. The HEPA filter has an efficiency of 98% for particle sizes 0.3 microns and larger.
- Lightweight and compact
- Durable construction
- Thermally protected brushless motor
- Uses a multi-stage
filtration system
- HEPA filter
- ESD safe by design
|
Specifications
| Part No. |
HJ3100 |
| Input Voltage |
115VAC - 50/60 Hz |
| Current Draw |
3.5a |
| Power Consumption |
350W |
| Motor Type |
PSC - Thermally Protected |
| Vacuum Pump/Blower Rating |
One Port: 100CFM (169 cu.m/h)
Two Ports:
180CFM (305 cu.m/h) |
| Noise Level |
58dB |
| Filters |
Pre-filter and HEPA/Carbon combination |
| Dimensions |
11(W) x 9(D) x 18(H) in.
27.94(W) x 22.86(D) x 45.72(H) cm |
| Weight (w/ filters) |
Approx. 18 lbs. (8.16 kgs) | |
|
HEALTH HAZARDS DUE TO SOLDER SMOKE |
| Soldering work involves both metallic and organic compounds. Solder and fluxes release formaldehyde and hydrazine, which can be carcinogenic at sufficient concentrations. Solder smoke and flux fumes are unhealthy, unpleasant and irritating to the nose, throat and lungs. |
| |
**Specifications subject to changes**
