| Features
Features all 9 volt type cells-alkaline, carbon zinc and carbon
Printed circuit board mounting
Battery snaps in place to assure positive contact for proper polarity
Battery holder can be mounted in any position and is designed to keep battery secure and in place at all times
When in place battery holder is completely insulated
Is non-metallic
Ideal where shock and vibration are encountered
Cornerfootpads and hole extensions keep holder elevated from PC board for ease of solder flux wash
High impact, textured ABS
Contacts are polarized for proper polarity
Accepts standard 2-56 machine screws

Applications
Microcomputers & Microprocessors
Memory back-up
Telecommunication equipment
Power source for computer real timeclocks
Appliances
Programmable electronic games
Emergency power supply equipment
Alarm & security back-up
Industrial controls
Electronic communications devices
Specifications
Material:
Holder: Textured, high impact ABS
PC Contacts: Spring steel, nickel plated
Quick Fit Terminals: Brass, nickel plated terminals
Terminals: Brass, nickel plated, snap fastener, male/female terminals
Color: Black
Temperature Range: -40º C to +85º C
Resistant to solvents: Acetic acid, ammonian hydroxide, ethylene glycol, heptane, hydrochloricacid, methanol, sulphuric acid.
Weight: 7.5 grams
Part Numbering Ordering System
BH-9VL | Solder Lugs |
| BH-9VPC | Printed Circuit Pin |
|
BH-9VW | 6" Wire Leads, Red/Black, 24 AWG, U.L. 1007, Tinned and Strip Ends
|

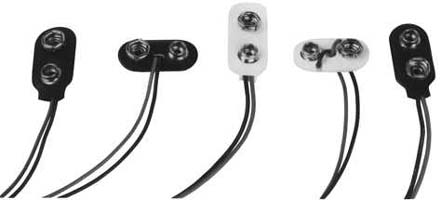

9-Volt Battery Snaps

Features
Brass, nickel plated contacts
PVC cover over fiberboard
I Style (2 pc.) molded case construction with crimp connections. Crimp on wire insulation and on wire provides strain relief that standard soldered snaps do not have. T Style has solder connection.
Fiberboard rated UL 94-HB 9 1/2" centers
1/8" strip and tin on end of wire leads
Wire: UL-1007, CSA type TR-64, 30OV, 800 C., 26 AWG or 24 AWG.
Part Numbering System
|
| BS |
|
|
6 |
|
|
T |
|
|
HD |
 |
|
|
 |
|
|
|
|
|
 |
| Series |
|
|
Lead Length |
|
|
Style |
|
|
Options |
| BS |
|
|
In Inches:
2
3
4
6
12 |
|
|
I = I Style
T = TStyle |
|
|
NiCad = 3 Wire/contacts
MC = 2 pc. molded case, PE
HD = Heavy Duty Snaps, Female snap material is phos. bronze, nickel plated
UC = Uncovered fiberboard
22 = 22 AWG
|
|
