Impulse Relays, RLY76/77 Series

Features Quick Connect Terminals: .250" (6.35mm) or .187" (4.75mm) Consult factory for actual stock (See Note under drawing) Multicontact Pulse Operation Power Saving

Electrical Characteristics Contact
Rating: 15 Amp @ 125/250 VAC
Contact Horsepower Rating: 1/2 HP @ 125/250 VAC

Coil
Coil Voltages: See Chart
Resistance: See chart

Operational Characteristics
Timing Values:
             Operate Time: 75 mS min
             Release Time: 75 mS min
Must Operate Voltage:
             AC Coil: 85% of nominal voltage @ +25°C
             DC Coil: 75% of nominal voltage @ +25°C

Insulation Characteristics
Dielectric Strength:
             Initial Breakdown Voltage:: 1500V RMS, 60Hz
             Insulation Resistance:: Class B (130°C)

Environmental Characteristics
Operating: -10°C to +60°C

Life
Mechanical: 10 million operations
Electrical: 50,000 operations (under rated load))

Weight
Std: 7.75 oz (241 grams) approx

Back to Top

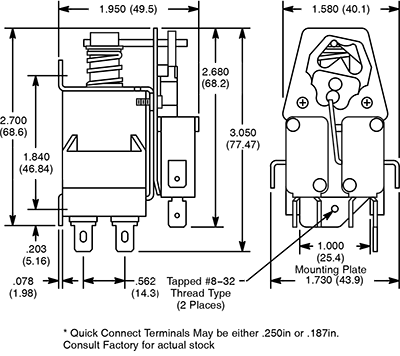

Dimensional Drawings

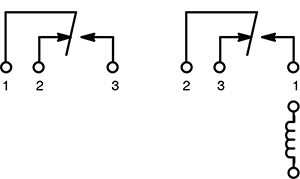

D72 Contact Arrangement

DPDT, 2 Form "C"
